ABB Gripper Integration Guide for Magnetic EOAT

A practical checklist for specifying magnetic grippers on ABB industrial or collaborative robots, covering flange, payload, tool data, I/O, RobotStudio planning, and RFQ inputs for custom EOAT review.

Buyer Intent:Commercial and integration investigation: compare ABB-compatible gripper options, confirm whether magnetic EOAT fits the workpiece, and prepare a technical RFQ for a robot cell.

abb robot gripperabb robotics gripperabb robot gripper typesgripper for abb robotabb irb 120 gripperabb palletizing grippergripper abb

Email RFQ WhatsApp +86 18857971991

Custom magnetic EOAT configured for ABB robot gripper integration

When Magnetic Fits

ABB robot handles carbon steel or another ferromagnetic workpiece with stable pickup surface and enough contact area.
Robot payload, moment, tool center, and motion profile leave margin for the full magnetic EOAT stack.
Integrator can define flange pattern, adapter plate, cable route, control signal, and release confirmation.
Machine tending, sheet metal transfer, palletizing, depalletizing, or material handling task benefits from contact pickup.

When to Avoid It

Buyer needs a certified ABB Robotics Ecosystem accessory with plug-and-play software support from ABB or an ABB-listed partner.
Workpieces are non-magnetic, weakly magnetic stainless grades, plastics, cardboard, soft goods, or mixed materials.
Robot model, payload, controller I/O, wrist interface, or safety assumptions are unknown and cannot be reviewed.
Application requires positive mechanical capture through every fault scenario without additional guarding or retention design.

Selection Matrix

Criteria	Magnetic Gripper Fit	When to Avoid

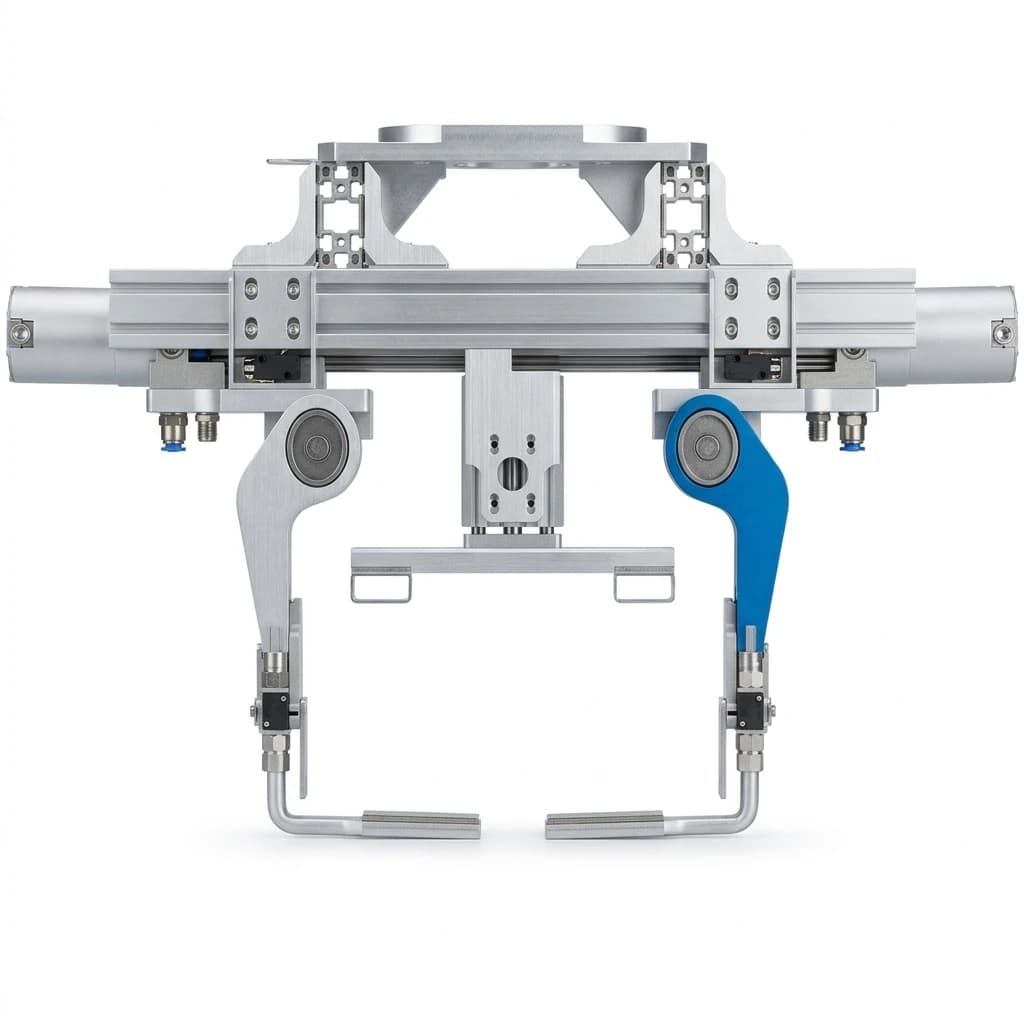

ABB robot family	Review IRB, GoFa, SWIFTI, or other ABB model data against EOAT mass, tool center, and work envelope.	Robot model and controller are not confirmed, or the remaining payload margin is too narrow for custom tooling.
Mechanical interface	Define wrist flange, adapter plate, dowel, bolt pattern, tool center, and service access before quotation.	The project expects a universal gripper with no adapter drawing, flange check, or commissioning review.
I/O and control	Map the gripper command, release confirmation, power needs, cable protection, and controller signal path.	Available I/O, voltage, fieldbus, or controller integration scope cannot be confirmed by the integrator.
Workpiece fit	Steel parts, blanks, plates, or ferromagnetic components have stable pickup faces and repeatable release behavior.	Surface coating, oil, burrs, curvature, stacked parts, or residual magnetism make pickup or release unreliable.
Application type	Machine tending, part transfer, palletizing, and depalletizing cells can be validated with real samples and motion data.	High-speed motion, unstable stacks, or operator exposure requires a different gripper type or additional retention.

RFQ Inputs to Prepare

ABB robot model, controller generation, payload class, wrist flange drawing, and available tool I/O.
Workpiece material, magnetic response, dimensions, thickness, weight, surface condition, coating, oil, burrs, and pickup face.
Cycle target, motion profile, pickup orientation, release time expectation, placement tolerance, and duty pattern.
Required holding-force margin, safety factor, guarding, drop-prevention expectation, and fault-state handling.
Adapter plate, quick-change, cable route, connector, signal, RobotStudio model, or tool data support needed from the supplier.
Quantity, project stage, destination country, target delivery window, drawings, photos, and sample availability.

Validation Sequence

1. Confirm ABB interface and tool stack

Start with robot model, controller, wrist flange, payload, moment, tool center, cable path, and service access before selecting a magnetic module.

2. Check the magnetic fit on representative parts

Validate material response, contact area, air gap, coating, oil, burrs, stacked-part behavior, residual magnetism, and release timing.

3. Map power, I/O, and release confirmation

Define command signal, field wiring, controller I/O, release verification, and any electrical customization before commissioning.

4. Simulate and document the EOAT assumptions

Prepare tool mass, center of gravity, adapter dimensions, and motion assumptions for RobotStudio or the integrator planning workflow.

5. Freeze OEM scope after sample validation

Finalize pole layout, mounting, cable, connector, packaging, and quality-control notes only after sample tests match the cell requirement.

Reference Visuals

Product images show compact magnetic EOAT examples from the local Magnetic Grippers asset library. Final tooling shape is determined by workpiece review and OEM interface requirements.

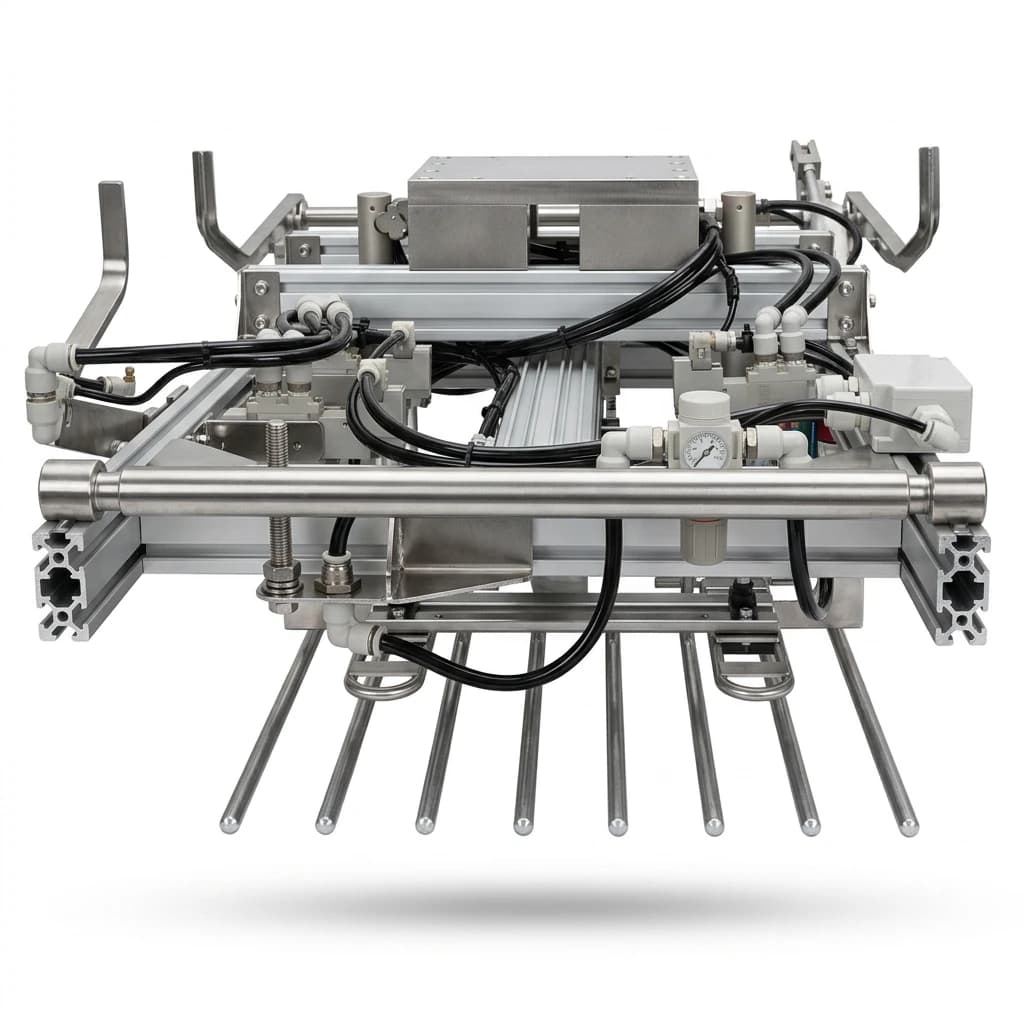

Robot magnetic gripper module for ABB-compatible end-of-arm tooling review

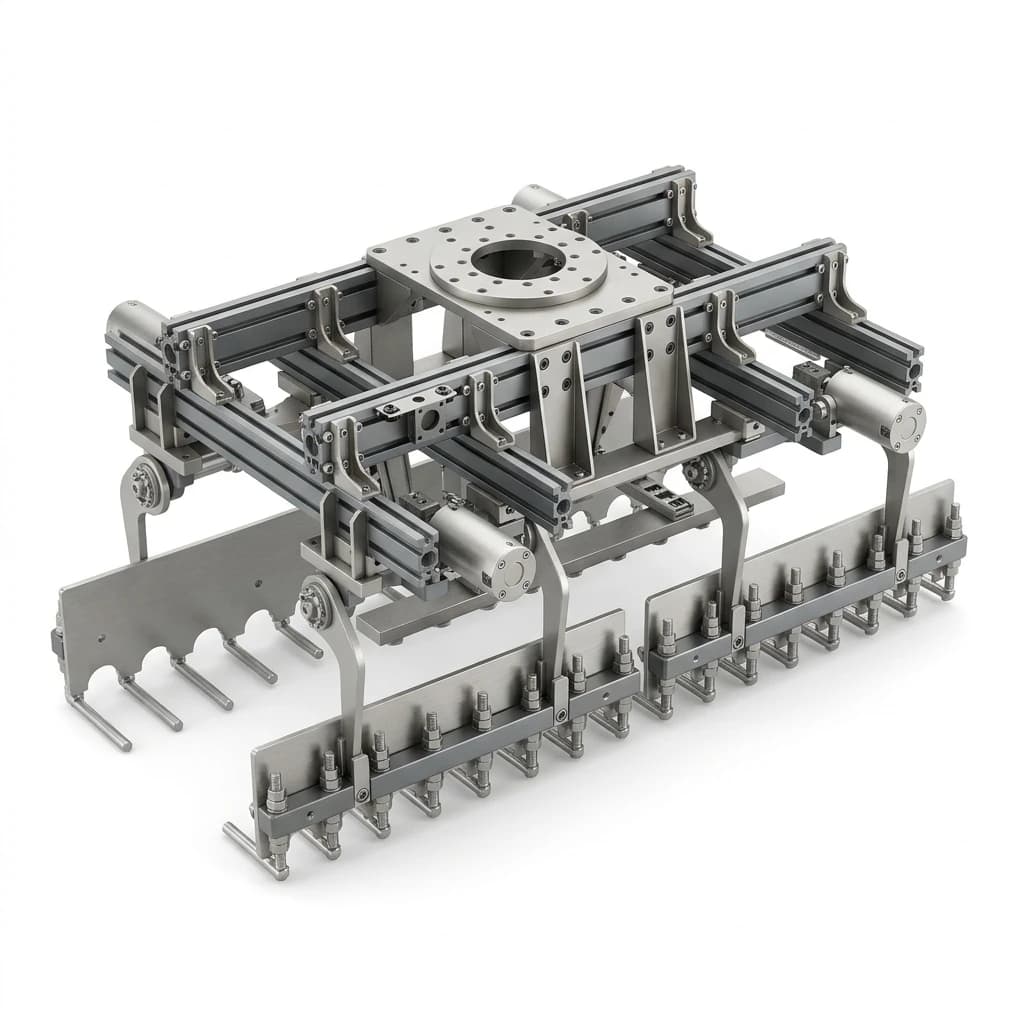

Magnetic EOAT layout for robot mounting and cable planning

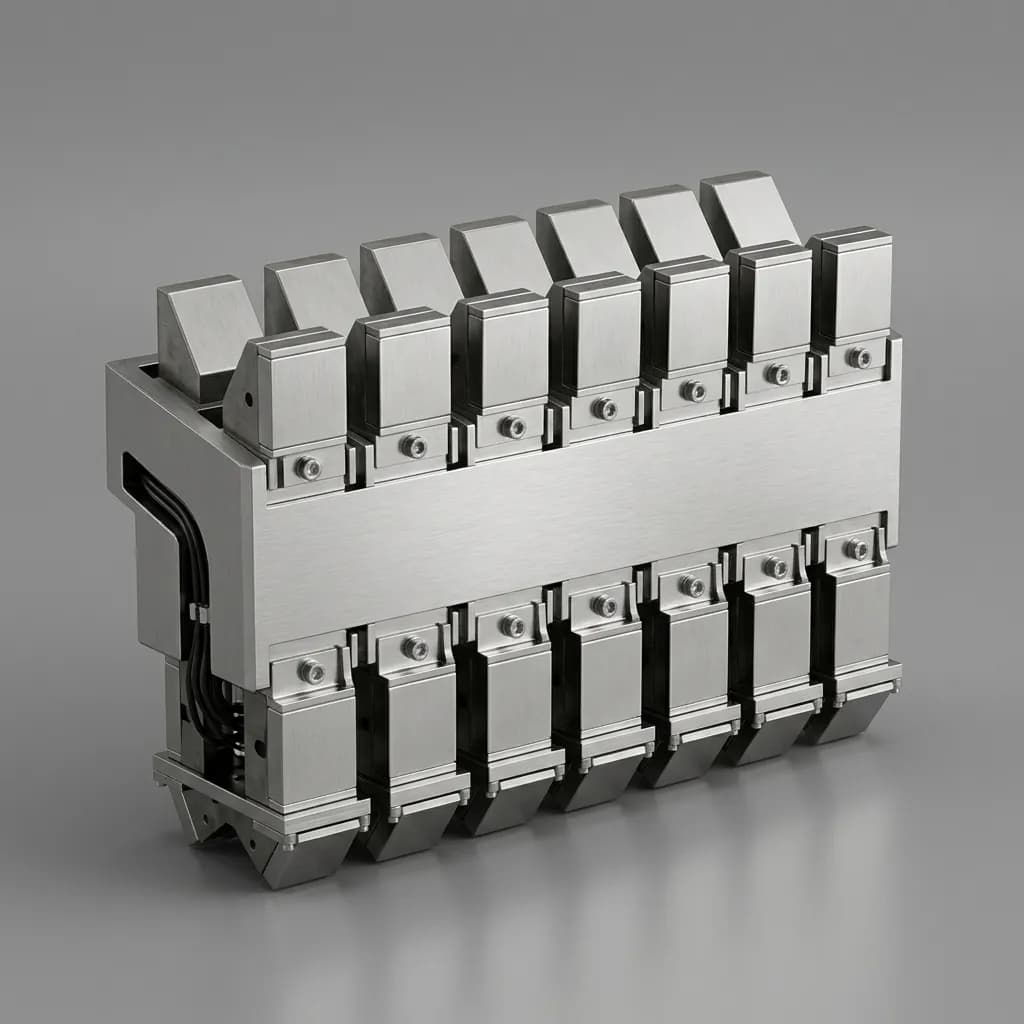

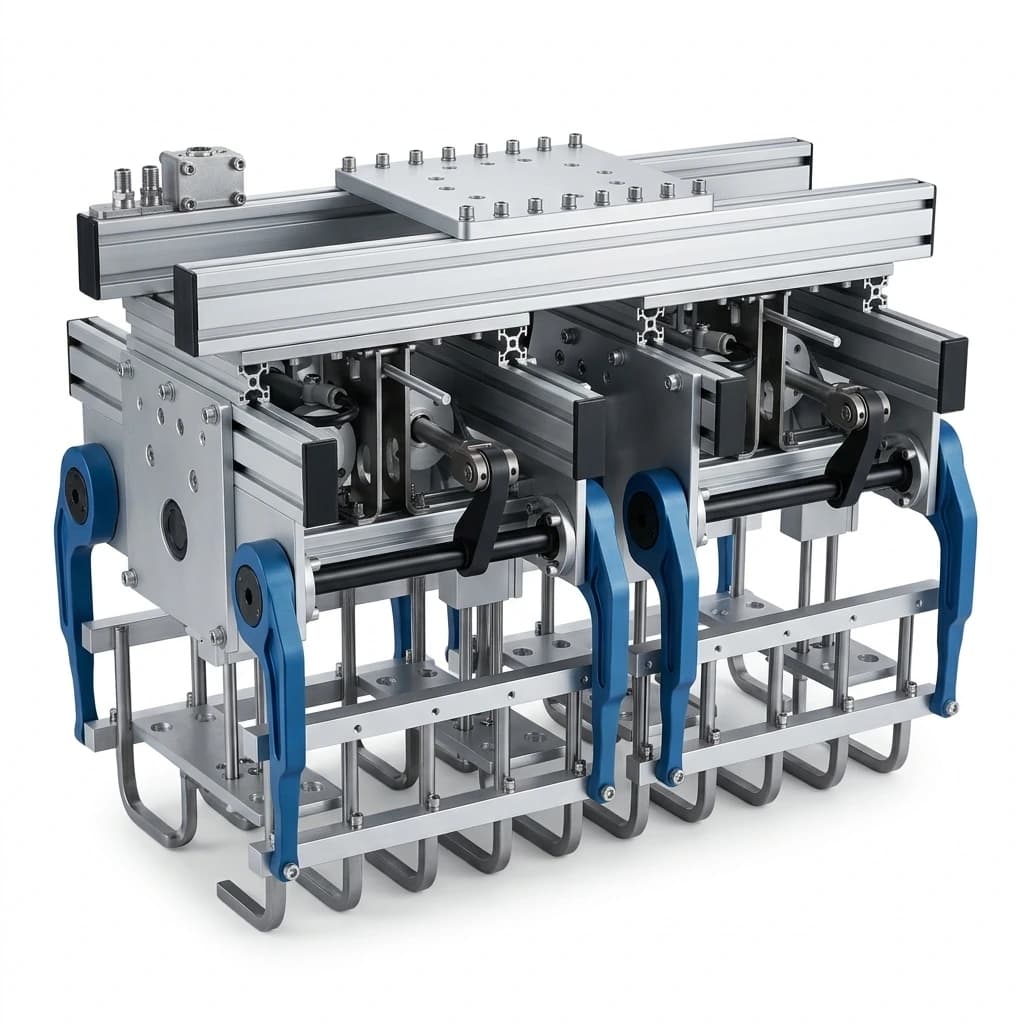

Electro-permanent magnetic gripper module for industrial robot handling

Risk and Trust Notes

Magnetic Grippers is not ABB and this page does not represent an official ABB accessory listing.
ABB compatibility depends on the robot model, payload, moment, flange, controller signal, tool data, and risk assessment, not only the gripper name.
Magnetic holding force is application-dependent; the real workpiece, motion profile, surface condition, and release behavior must be validated before production use.

Source Pattern Reviewed

Buyer FAQ

Do you sell an official ABB gripper?

No. We supply custom magnetic EOAT and gripper modules that can be reviewed for ABB robot projects. Official ABB Robotics Ecosystem accessories should be verified through ABB or ABB-listed partners.

Can you review an ABB IRB 120 gripper requirement?

Yes, if the project provides the ABB IRB 120 payload, wrist interface, controller I/O, workpiece details, cycle target, and safety assumptions. The review checks whether a compact magnetic gripper is realistic before quotation.

Which ABB robot gripper types should I compare?

Common ABB robot gripper types include finger grippers, vacuum tools, magnetic grippers, tool changers, and custom EOAT. Magnetic grippers fit ferromagnetic workpieces; they are not a universal choice for every robot or material.

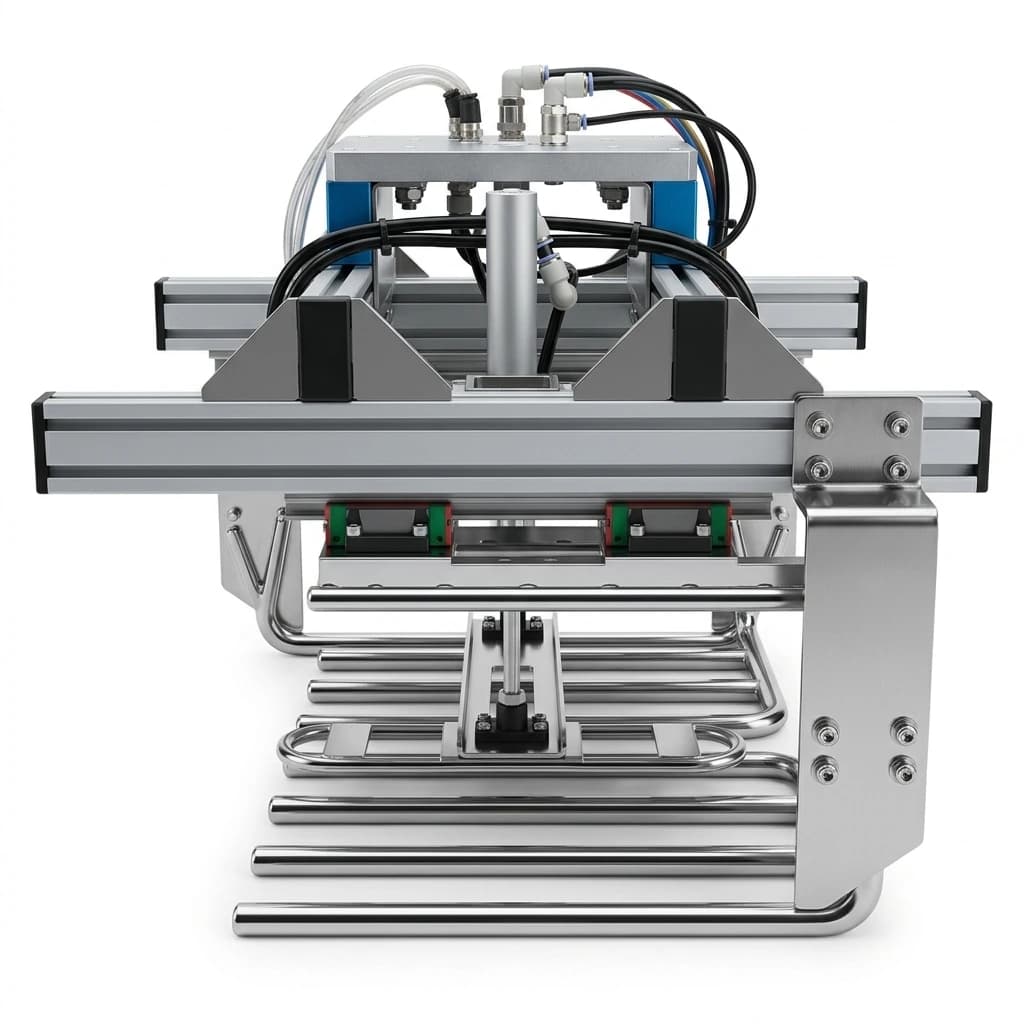

What is needed for an ABB palletizing gripper review?

Send the ABB robot model, payload margin, part or stack geometry, material, weight, pickup face, release requirement, cycle target, and whether the tool needs adapter, cable, connector, or RobotStudio support.

Can you support OEM customization for a gripper for ABB robot cells?

Yes. We can review magnetic module selection, pole layout, adapter plate, cable and connector requirements, sample validation, export packaging, and OEM labeling for ABB robot integration projects.
